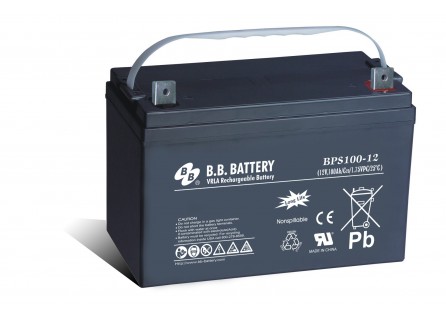

BPS100-12 BPS Series - For General Use
额定容量: | 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr) |
重量: | 32.70kg (72.10lbs) |
尺寸: |
329L x 172W x215H x 238TH (mm) 12.95L x 6.77W x8.46H x 9.37TH (inch) |
BPS100-12 BPS Series - For General Use
• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.
Internal Resistance: ≦27mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Container Material: Standard: ABS( UL 94-HB) BP7-12 Optional: Flame Retardant ABS(UL 94-V0) BP7-12FR
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 12 V
额定容量 : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 32.70kg (72.10lbs)
尺寸 : 329L x 172W x215H x 238TH (mm)
12.95L x 6.77W x8.46H x 9.37TH (inch)
端子类型 : B3 (Fitting M6 bolt & nut) , I2 is optional
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 30 A
应用范围 : 高尔夫球车, 不间断电源, 电信行业
