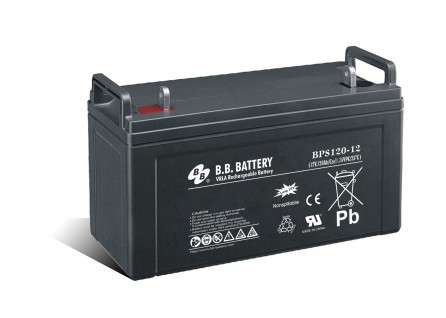

BPS120-12 BPS Series - For General Use

电压： 12 V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量：	39.50kg (87.10lbs)

尺寸：	407L x 173W x210H x 239TH (mm) 16.02L x 6.81W x8.27H x 9.41TH (inch)

应用范围：高尔夫球车, 不间断电源, 电信行业

端子类型： I2 (optional), B4

BPS120-12   BPS Series - For General Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

		Internal Resistance: ≦27mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) BP7-12  Optional: Flame Retardant ABS(UL 94-V0) BP7-12FR

	All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 39.50kg (87.10lbs)
尺寸 : 407L x 173W x210H x 239TH (mm)
                        16.02L x 6.81W x8.27H x 9.41TH (inch)
端子类型 : B4 (Fitting M6 bolt & nut) , I2 is optional
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 36 A
应用范围 :
   高尔夫球车, 不间断电源, 电信行业
