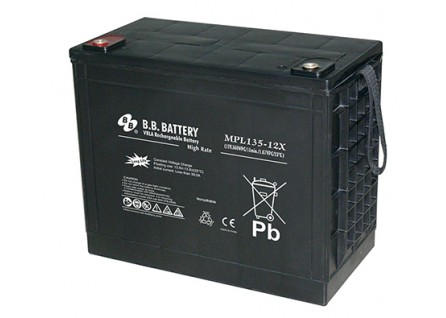

MPL135-12X MPL Series - For High Rate, Long Life Standby Use

电压： 12 V

重量：	41.1kg (90.6lbs)

尺寸：	344L x 173W x270.5H x 277TH (mm) 13.54L x 6.84W x10.65H x 10.91TH (inch)

应用范围：高尔夫球车, 不间断电源, 电信行业, 有线电视, 发电站, 船舶设备

端子类型： I3

MPL135-12X   MPL Series - For High Rate, Long Life Standby Use

				• Maintenance free(no water topping-up required).

				• No free acid(Non-spillable battery).

				• Low self-discharge rate,lower than 3% capacity loss per month.

				• Can be used in any orientation(excluding used inverted).

				• The battery is designed with very lower resistance and exceeding high power performance.

				• Flame-arrestor is installed to ensure safety.

				• Absorbent Glass Mat technology for efficient gas recombination.

		Short Circuit Current: 3500 A

		Internal Resistance: ≦2.9mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0 C~50 C(32 F~122 F)

		 Discharge -20 C~60 C(-4 F~140 F)

		Storage. -20 C~50 C(-4 F~122 F)

		Container Material:  Standard: PP( UL 94-HB) MPL135-12  Optional: Flame Retardant PP(UL 94-V0) MPL135-12FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
重量 : 41.1kg (90.6lbs)
尺寸 : 344L x 173W x270.5H x 277TH (mm)
                        13.54L x 6.84W x10.65H x 10.91TH (inch)
端子类型 : I3
最大充电电流 : 39.0
应用范围 :
   高尔夫球车, 不间断电源, 电信行业, 有线电视, 发电站, 船舶设备
