BP Series - For General Use
BP Series - For General Use

BP1.0-6 BP Series - For General Use

Voltage： 6 V
Nominal Capacity： 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
Approx. Weight： 0.25kg (0.55lbs)
Dimensions： 51L x 42W x51H x 56TH (mm)
2.01L x 1.65W x2.01H x 2.20TH (inch)
Application： UPS, Lojack, Security, Medical Equipment
Terminal： T1

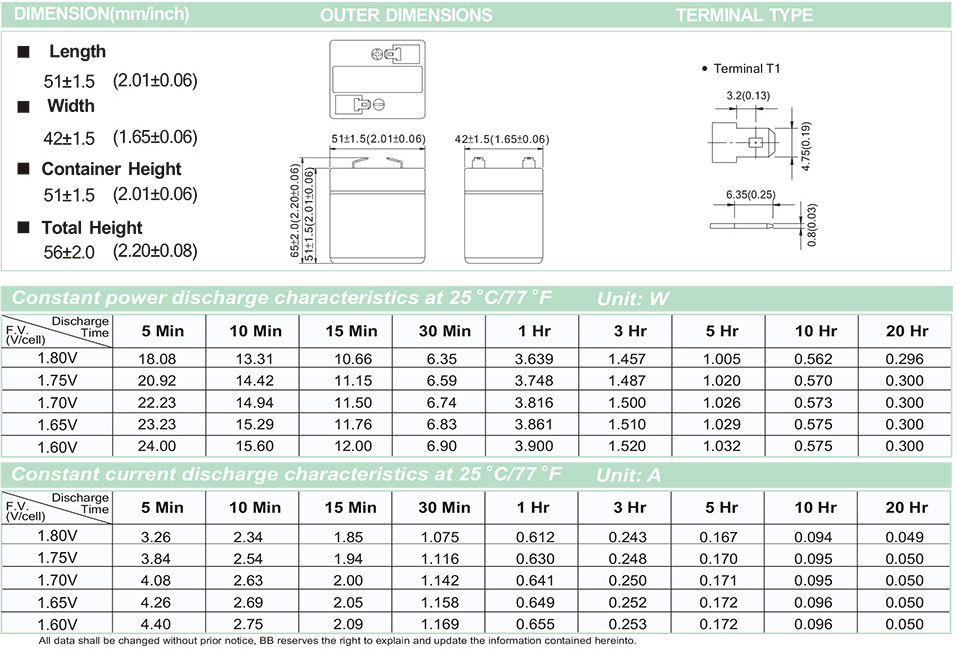

Specification Download

BP1.0-6 BP Series - For General Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦65mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) BP1.0-6  Optional: Flame Retardant ABS(UL 94-V0) BP1.0-6FR




Voltage : 6 V

Nominal Capacity : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

Approx. Weight : 0.25kg (0.55lbs)

Dimensions : 51L x 42W x51H x 56TH (mm)
                        2.01L x 1.65W x2.01H x 2.20TH (inch)

Terminal : T1 (Faston Tab 187) T2 is optional

Max Discharge Current for 5 Sec :15 A (5 sec.)

Max Charge Current : 0.3 A

Application : UPS, Lojack, Security, Medical Equipment
