Product Selections / Product Information
BP Series - For General Use
BP Series - For General Use

BP8-6 BP Series - For General Use

Voltage： 6 V
Nominal Capacity： 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
Approx. Weight： 1.35kg (2.98lbs)

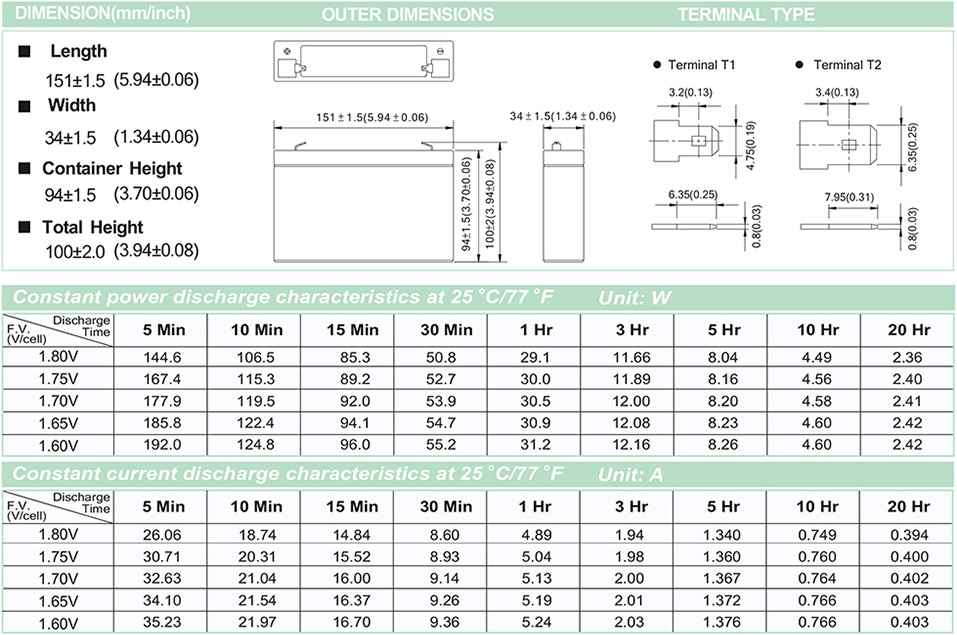

Dimensions： 151L x 34W x94H x 100TH (mm)
5.94L x 1.34W x3.70H x 3.94TH (inch)
Application： UPS, Toy-Car, Emergency Light, Rechargeable Flashlight, Fan
Terminal： T1,  T2 (optional)

Specification Download

BP8-6 BP Series - For General Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦16mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) BP8-6  Optional: Flame Retardant ABS(UL 94-V0) BP8-6FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.






Voltage : 6 V

Nominal Capacity : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

Approx. Weight : 1.35kg (2.98lbs)

Dimensions : 151L x 34W x94H x 100TH (mm)
                        5.94L x 1.34W x3.70H x 3.94TH (inch)

Terminal : T1 (Faston Tab 187) T2 is optional

Max Discharge Current for 5 Sec :120 A (5 sec.)

Max Charge Current : 2.4 A

Application : UPS, Toy-Car, Emergency Light, Rechargeable Flashlight, Fan
