Product Selections / Product Information
BP Series - For General Use
BP Series - For General Use

BP4-12 BP Series - For General Use

Voltage： 12 V
Nominal Capacity： 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
Approx. Weight： 1.67kg (3.68lbs)
Dimensions： 90L x 70W x102H x 106TH (mm)
3.54L x 2.76W x4.02H x 4.17TH (inch)
Application： UPS, Toy-Car, Fan, Electronic Doorbell
Terminal： T1,  T2 (optional)

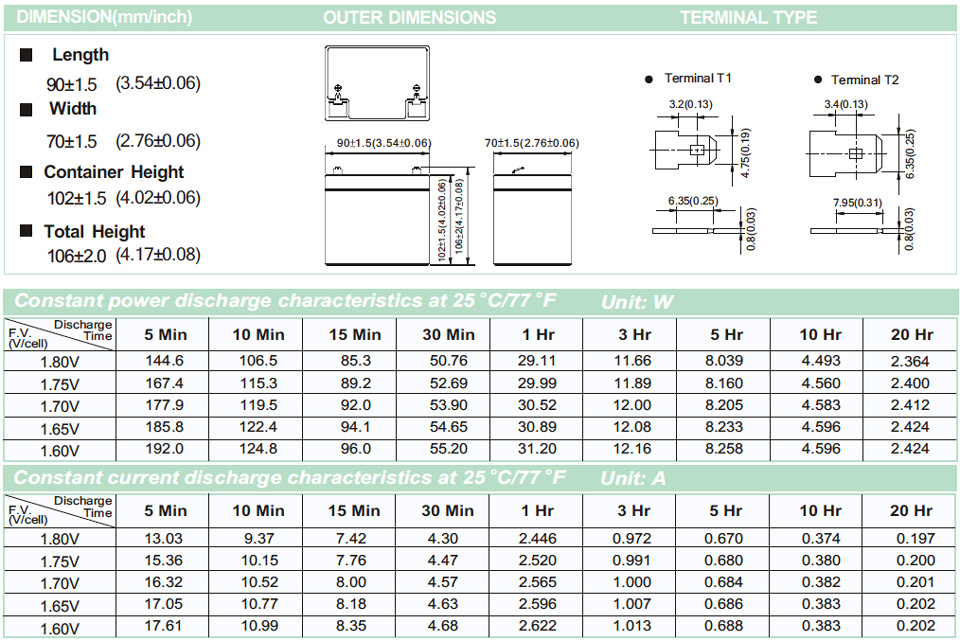

Specification Download

BP4-12 BP Series - For General Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦45mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: Standard: ABS( UL 94-HB) BP4-12  Optional: Flame Retardant ABS(UL 94-V0) BP4-12FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.


Voltage : 12 V

Nominal Capacity : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

Approx. Weight : 1.67kg (3.68lbs)

Dimensions : 90L x 70W x102H x 106TH (mm)
                        3.54L x 2.76W x4.02H x 4.17TH (inch)

Terminal : T1 (Faston Tab 187) T2 is optional

Max Discharge Current for 5 Sec :60 A (5 sec.)

Max Charge Current : 1.2 A

Application : UPS, Toy-Car, Fan, Electronic Doorbell
