BPL Series - For Long Life Standby Use
BPL Series - For Long Life Standby Use

BPL210-12 BPL Series - For Long Life Standby Use

Voltage： 12 V
Nominal Capacity： 1(20Hr), 1(5Hr)
Approx. Weight： 73.20kg (161.4lbs)

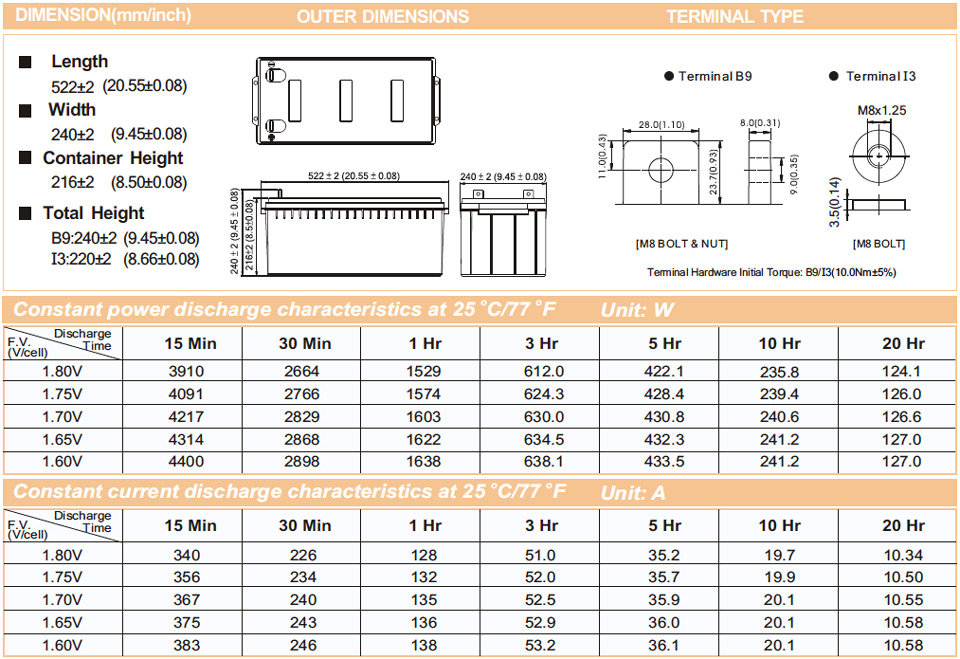

Dimensions： 522L x 240 W x216H x 240TH (mm)
20.55 L x 9.45W x8.50H x 9.45TH (inch)
Application： UPS, Telecom
Terminal： I3 (optional),  B9

Specification Download

BPL210-12 BPL Series - For Long Life Standby Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦2.5mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) BPL210-12  Optional: Flame Retardant ABS(UL 94-V0) BPL210-12FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.




Voltage : 12 V

Nominal Capacity : 1(20Hr), 1(5Hr)

Approx. Weight : 73.20kg (161.4lbs)

Dimensions : 522L x 240 W x216H x 240TH (mm)
                        20.55 L x 9.45W x8.50H x 9.45TH (inch)

Terminal : B9 (Fitting M8 bolt & nut) I3 is optional

Max Discharge Current for 5 Sec :800 A (5 sec.)

Max Charge Current : 63 A

Application : UPS, Telecom
