BC Series
BC Series

BC100-12 BC Series

Voltage： 12 V
Nominal Capacity： 1(20Hr)
Approx. Weight： 28.5kg (62.8lbs)

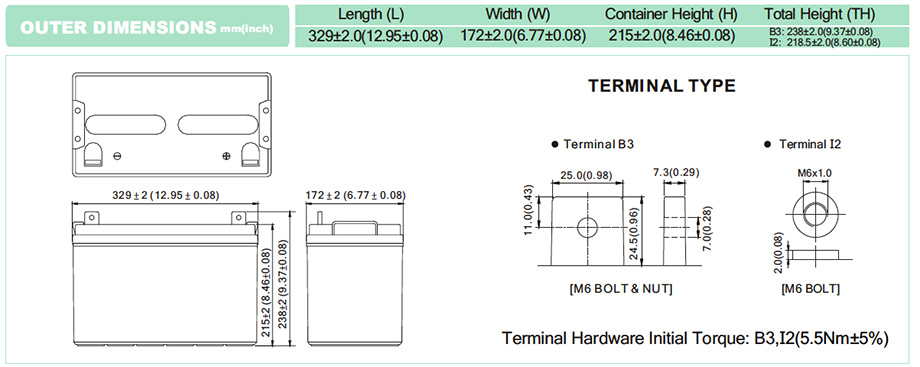

Dimensions： 329L x 172W x215H x B3:238, I2:218TH (mm)
12.95L x 6.77W x8.46H x B3:9.37, I2:8.60TH (inch)
Application： UPS, Telecom
Terminal： I2 (optional),  B3

Specification Download

BC100-12 BC Series

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦6.0mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) BC100-12  Optional: Flame Retardant ABS(UL 94-V0) BC100-12FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.







Voltage : 12 V

Nominal Capacity : 1(20Hr)

Approx. Weight : 28.5kg (62.8lbs)

Dimensions : 329L x 172W x215H x B3:238, I2:218TH (mm)
                        12.95L x 6.77W x8.46H x B3:9.37, I2:8.60TH (inch)

Terminal : B3 (Fitting M6 bolt & nut) I2 is optional

Max Discharge Current for 5 Sec :85 A (5 sec.)

Max Charge Current : 25 A

Application : UPS, Telecom
