HRL Series
HRL Series

HRL5.8-12 HRL Series

Voltage： 12 V
Nominal Capacity：
Approx. Weight： 1.88kg (4.15lbs)

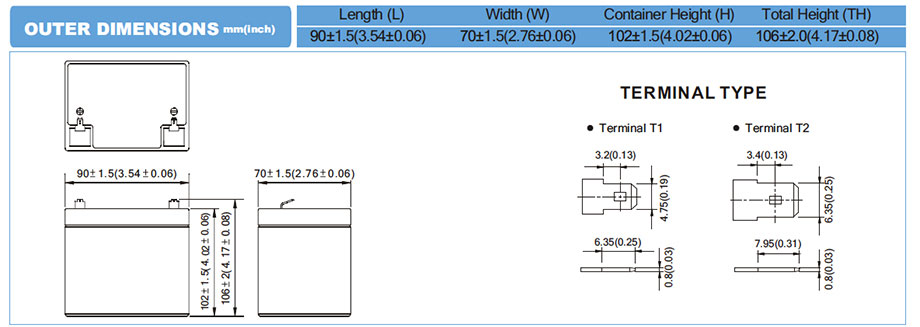

Dimensions： 90L x 70W x102H x 106TH (mm)
3.54L x 2.76W x4.02H x 4.17TH (inch)
Application： UPS, Medical Equipment, Wind Power, Laboratory Equipment, Power Pack, Jump Starter, Data Center
Terminal： T1,  T2 (optional)

Specification Download

HRL5.8-12 HRL Series

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• The battery is designed for high rate usage.
• Absorbent Glass Mat technology for efficient gas recombination.
• The power density at 5min~15min discharging rate is 30% higher than BP series.

Internal Resistance: ≦23mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) HRL5.8-12  Optional: Flame Retardant ABS(UL 94-V0) HRL5.8-12FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.



Voltage : 12 V

Approx. Weight : 1.88kg (4.15lbs)

Dimensions : 90L x 70W x102H x 106TH (mm)
                        3.54L x 2.76W x4.02H x 4.17TH (inch)

Terminal : T1 (Faston Tab 187) T2 is optional

Max Discharge Current for 5 Sec :79.5 A (5 sec.)

Max Charge Current : 1.59 A

Application : UPS, Medical Equipment, Wind Power, Laboratory Equipment, Power Pack, Jump Starter, Data Center
