MPL Series - For High Rate, Long Life Standby Use
MPL Series - For High Rate, Long Life Standby Use

MPL100-12 Handel MPL Series - For High Rate, Long Life Standby Use

Voltage： 12 V
Nominal Capacity：
Approx. Weight： 30.2kg (66.6lbs)

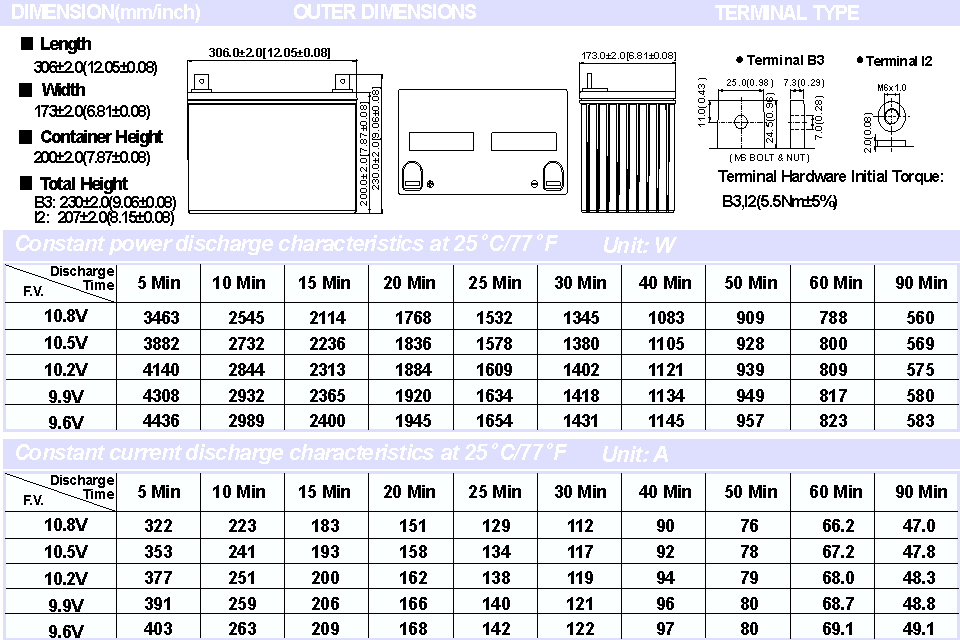

Dimensions： 306L x 173W x200H x B3:230, I2:207TH (mm)
12.05L x 6.81W x7.87H x B3:9.06, I2:8.15TH (inch)
Application： Golf Cart, UPS, Telecom, Cable TV, Power station, Marine
Terminal： I2 (optional),  B3

Specification Download

MPL100-12 Handel MPL Series - For High Rate, Long Life Standby Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• The battery is designed with very lower resistance and exceeding high power performance.
• Long life expectancy 10 years in float application.
• Flame-arrestor is installed to ensure safety.
• Carry handels for easy installation.
• Absorbent Glass Mat technology for efficient gas recombination.

Short Circuit Current: 2300 A

Internal Resistance: ≦4mΩ ( Fully Charged )

Operating Temperature Range:

Charge 0 C~50 C(32 F~122 F)

 Discharge -20 C~60 C(-4 F~140 F)

Storage. -20 C~50 C(-4 F~122 F)

Container Material:  Standard: PP( UL 94-HB) MPL100-12  Optional: Flame Retardant ABS(UL 94-V0) MPL100-12FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.






Voltage : 12 V

Approx. Weight : 30.2kg (66.6lbs)

Dimensions : 306L x 173W x200H x B3:230, I2:207TH (mm)
                        12.05L x 6.81W x7.87H x B3:9.06, I2:8.15TH (inch)

Terminal : B3 (Fitting M6 bolt & nut) I2 is optional

Max Charge Current : 29.5 A

Application : Golf Cart, UPS, Telecom, Cable TV, Power station, Marine
