BPS Series - For General Use
BPS Series - For General Use

BPS26-12 BPS Series - For General Use

Voltage： 12 V
Nominal Capacity： 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
Approx. Weight： 9.40kg (20.73lbs)
Dimensions： 175L x 166W x125H x 125TH (mm)
6.89L x 6.54W x4.92H x 4.92TH (inch)
Application： Golf Cart, UPS, Wheelchair, Lawn Mower, Medical Equipment
Terminal： T2 (optional),  I1 (optional),  B1

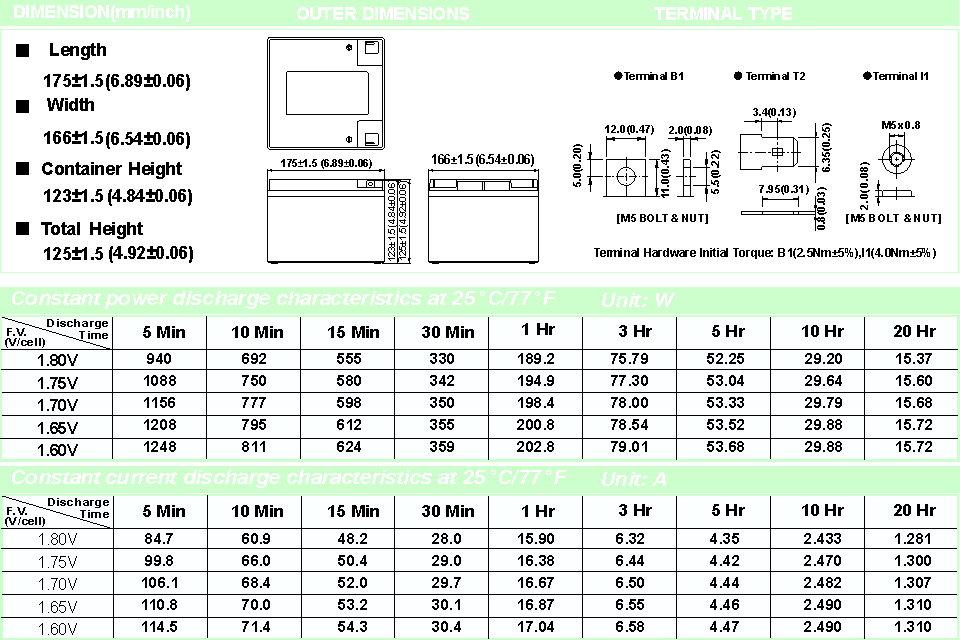

Specification Download

BPS26-12 BPS Series - For General Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦27mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) BP7.5-12  Optional: Flame Retardant ABS(UL 94-V0) BP7.5-12FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.


Voltage : 12 V

Nominal Capacity : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

Approx. Weight : 9.40kg (20.73lbs)

Dimensions : 175L x 166W x125H x 125TH (mm)
                        6.89L x 6.54W x4.92H x 4.92TH (inch)

Terminal : B1 (Fitting M5 bolt & nut) , T2 and I1 are optional

Max Discharge Current for 5 Sec :390 A (5 sec.)

Max Charge Current : 7.8 A

Application : Golf Cart, UPS, Wheelchair, Lawn Mower, Medical Equipment
