Product Selections / Product Information
BPS Series - For General Use
BPS Series - For General Use

BPS40-12 BPS Series - For General Use

Voltage： 12 V
Nominal Capacity： 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
Approx. Weight： 14.30kg (31.53lbs)
Dimensions： 197L x 165W x171H x 171TH (mm)
7.76L x 6.50W x6.73H x 6.73TH (inch)
Application： Golf Cart, UPS, Wheelchair, Lawn Mower, Medical Equipment
Terminal： I1 (optional),  I2 (optional),  B2

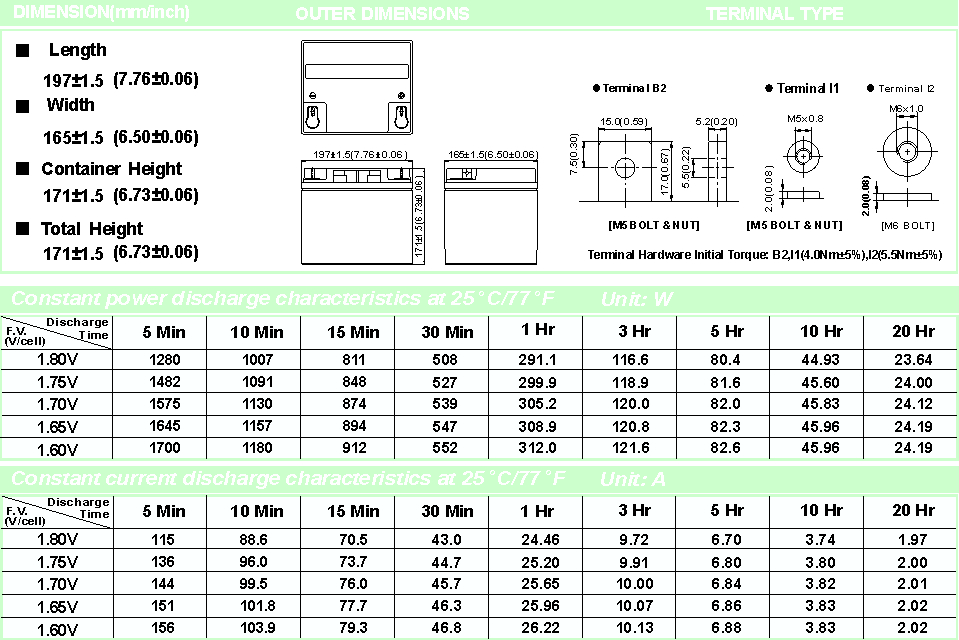

Specification Download

BPS40-12 BPS Series - For General Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦27mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) BP7.5-12  Optional: Flame Retardant ABS(UL 94-V0) BP7.5-12FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.


Voltage : 12 V

Nominal Capacity : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

Approx. Weight : 14.30kg (31.53lbs)

Dimensions : 197L x 165W x171H x 171TH (mm)
                        7.76L x 6.50W x6.73H x 6.73TH (inch)

Terminal : B2 (Fitting M5 bolt & nut) , I1 and I2 are optional

Max Discharge Current for 5 Sec :600 A (5 sec.)

Max Charge Current : 12 A

Application : Golf Cart, UPS, Wheelchair, Lawn Mower, Medical Equipment
