Zelus GEL Battery
Zelus GEL Battery

GBC12/37.5 Zelus GEL Battery

Voltage： 12 V
Nominal Capacity： 1(5Hr)
Approx. Weight： 16.1kg (52.91lbs)
Dimensions： 197L x 165W x171H x 171TH (mm)
7.76L x 6.50W x6.73H x 6.73TH (inch)
Application： Golf Cart, Auto Sweeper, Wheelchair, RV, Renewable Energy
Terminal： I2

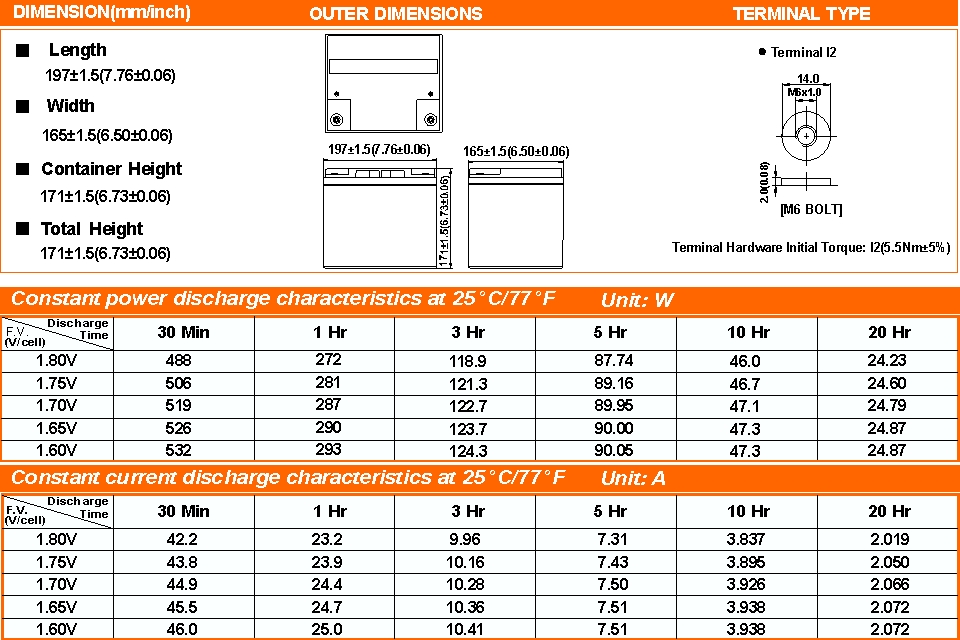

Specification Download

GBC12/37.5 Zelus GEL Battery

• The sulfuric acid is mixed with silica fume, which makes the resulting mass gel-like and immobile.
• Increased durability and deep cycle ability for heavy demand. High temperature stability, mechanical strength and low acid displacement.
• Superior performance with deep discharges.
• Patented safety valve to have accurate pressure operating for long battery life.

Internal Resistance: ≦11mΩ ( Fully Charged )

Self Discharge: <2% per month (25°C)

Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

Container Material:  Standard: ABS( UL 94-HB) GB 12/30  Optional: Flame Retardant ABS(UL 94-VO) GB 12/30FR




All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





Voltage : 12 V

Nominal Capacity : 1(5Hr)

Approx. Weight : 16.1kg (52.91lbs)

Dimensions : 197L x 165W x171H x 171TH (mm)
                        7.76L x 6.50W x6.73H x 6.73TH (inch)

Terminal : I2

Max Discharge Current for 5 Sec :640 A (5 sec.)

Max Charge Current : 7.5 A

Application : Golf Cart, Auto Sweeper, Wheelchair, RV, Renewable Energy
