VRLA-GEL

GB-Solar

Solar & PV

Maintenance and lifespan are always considered as key factors for the batteries in off-grid solar home or back-up emergency power system.

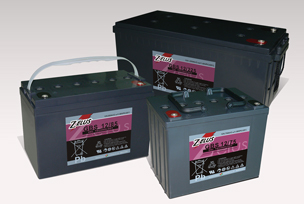

GB-S delivers long cycle life and prolong life in elevated ambient temperatures. The gelled electrolyte transfers heat generated during cycling outside of the battery more efficiently than other VRLA technologies.

With the entire battery sealed at the factory, they can be mounted in any direction and are used in solar applications that cannot receive regular maintenance. Since sealed batteries do not need regular maintenance, they can be stacked closely together.

Model Voltage Capacity
(Ah)		 Weight Outer Dimensions
Length width Height
GB-S (V) (C100) (Kg) (mm) (mm) (mm)
GBS 12/7 12 7 2.45 151 65 93
GBS 12/33 12 33 11.3 195 129 179
GBS 12/43.5 12 43.5 16.1 197 165 171
GBS 12/75 12 75 24.0 260 173 217
GBS 12/85 12 85 29.5 329 172 219
GBS 12/110 12 110 35.5 330 173 241
GBS 12/120 12 120 39.0 407 173 239
GBS 12/130 12 130 40.0 344 172 280
GBS 06/170 12 170 55.0 522 202 220
GBS 12/225 12 225 67.5 522 240 220
GBS 06/215 6 215 32.8 244 190 275
