Product Selections / Product Information
FTB Series - Front Terminal Battery
FTB Series - Front Terminal Battery

FTB100-12 FTB Series - Front Terminal Battery

Voltage： 12 V
Nominal Capacity： 1(10Hr), 1(1Hr)
Approx. Weight： 36.8kg (81.3lbs)
Dimensions： 394L x 110W x272H x 265TH (mm)
15.51L x 4.33W x10.74H x 11.2TH (inch)
Application： UPS, Telecom, Broadband, Electric Utility, Railroad Signal
Terminal： I2

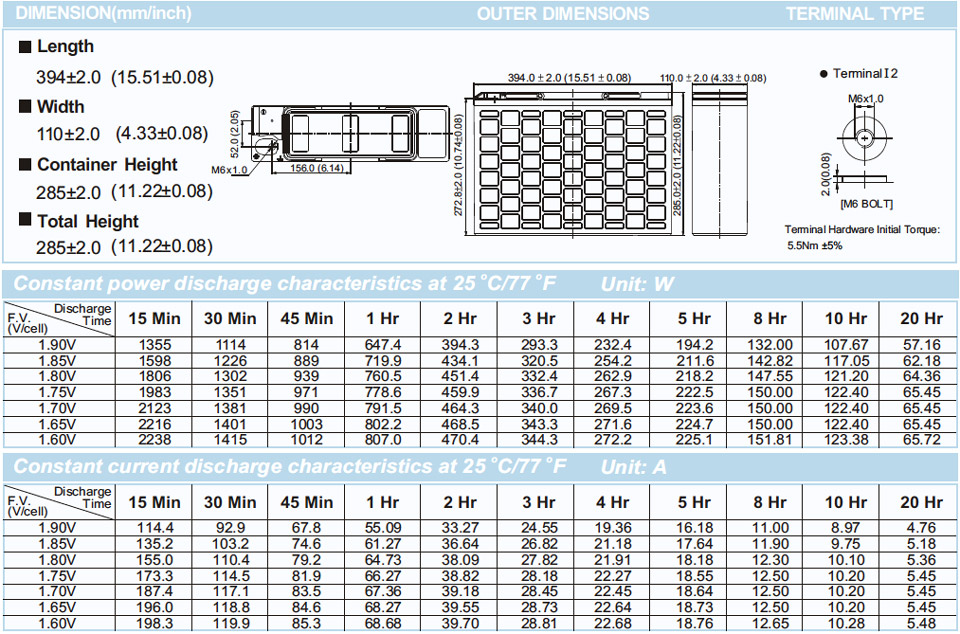

Specification Download

FTB100-12 FTB Series - Front Terminal Battery

• Absorbent Glass Mat technology for efficient gas recombination

• Front accessible terminal for ease of assembly

• Carry handles for ease of installation

• Strengthened rib design to maintain structural integrity

• Flame-arrestor is installed to ensure safety

• One-way self-resealing safety valve for long life guarantee

Internal Resistance: ≦3.5mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) FTB100-12  Optional: Flame Retardant ABS(UL 94-V0) FTB100-12FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.






Voltage : 12 V

Nominal Capacity : 1(10Hr), 1(1Hr)

Approx. Weight : 36.8kg (81.3lbs)

Dimensions : 394L x 110W x272H x 265TH (mm)
                        15.51L x 4.33W x10.74H x 11.2TH (inch)

Terminal : I2 (M6 Female Thread)

Max Discharge Current for 5 Sec :800 A (5 sec.)

Max Charge Current : 25 A

Application : UPS, Telecom, Broadband, Electric Utility, Railroad Signal
