MSB Series - 2V, For Telecomm Use
MSB Series - 2V, For Telecomm Use

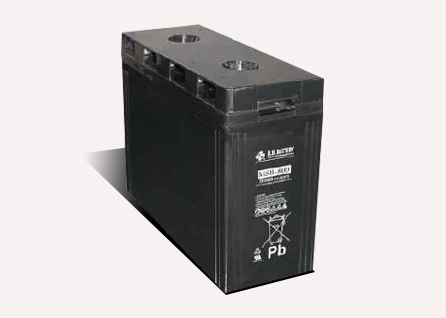

MSB-800 (2V, 800Ah) MSB Series - 2V, For Telecomm Use

Voltage： 2 V
Nominal Capacity： 1(10Hr), 1(1Hr)
Approx. Weight： 63.0kg (138.9lbs)
Dimensions： 410L x 175W x330H x 358TH (mm)
15.79L x 6.89W x12.99H x 14.09TH (inch)
Application： UPS, Telecom, Energy Storage System, Central Office
Terminal： I3 (optional),  B6

Specification Download

MSB-800 (2V, 800Ah) MSB Series - 2V, For Telecomm Use

• Sealed structure, no electrolyte leakage or spill.
• High performance alloy to secure corrosion-proof feature.
• Unique electrolyte system achieves maximum service life.
• Low self-discharge rate, lower than 3% capacity loss per month.
• Special paste formula promotes the good charging acceptance.
• Electrolyte with gel technology.

Internal Resistance: ≦0.6mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Safety Valve: Opening pressure 10~35 kPa

Container Material:  Standard: Standard: ABS( UL 94-HB) MSB-800  Optional: Flame Retardant ABS(UL 94-V0) MSB-800FR





All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.




Voltage : 2 V

Nominal Capacity : 1(10Hr), 1(1Hr)

Approx. Weight : 63.0kg (138.9lbs)

Dimensions : 410L x 175W x330H x 358TH (mm)
                        15.79L x 6.89W x12.99H x 14.09TH (inch)

Terminal : B6 (Fitting M8 bolt & nut) I3 is optional

Max Discharge Current for 5 Sec :3200 A (5 sec.)

Max Charge Current : 200 A

Application : UPS, Telecom, Energy Storage System, Central Office
