MSB Series - 2V, For Telecomm Use
MSB Series - 2V, For Telecomm Use

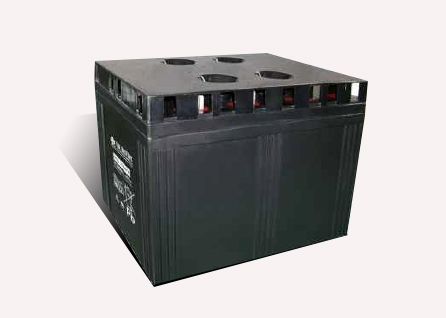

MSB-2000 (2V, 2000Ah) MSB Series - 2V, For Telecomm Use

Voltage： 2 V
Nominal Capacity： 1(10Hr), 1(1Hr)
Approx. Weight： 153.0kg (337.3lbs)
Dimensions： 490L x 350W x343H x 371TH (mm)
19.29 L x 13.78W x13.50H x 14.61TH (inch)
Application： UPS, Telecom, Energy Storage System, Central Office
Terminal： B6

Specification Download

MSB-2000 (2V, 2000Ah) MSB Series - 2V, For Telecomm Use

• Sealed structure, no electrolyte leakage or spill.
• High performance alloy to secure corrosion-proof feature.
• Unique electrolyte system achieves maximum service life.
• Low self-discharge rate, lower than 3% capacity loss per month.
• Special paste formula promotes the good charging acceptance.
• Electrolyte with gel technology.

Internal Resistance: ≦0.4mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Safety Valve: Opening pressure 10~35 kPa

Container Material:  Standard: Standard: ABS( UL 94-HB) MSB-2000  Optional: Flame Retardant ABS(UL 94-V0) MSB-2000FR





All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.




Voltage : 2 V

Nominal Capacity : 1(10Hr), 1(1Hr)

Approx. Weight : 153.0kg (337.3lbs)

Dimensions : 490L x 350W x343H x 371TH (mm)
                        19.29 L x 13.78W x13.50H x 14.61TH (inch)

Terminal : B6 (Fitting M8 bolt & nut) I3 is optional

Max Discharge Current for 5 Sec :7000 A (5 sec.)

Max Charge Current : 500 A

Application : UPS, Telecom, Energy Storage System, Central Office
