SHR Series - For High Rate Use
SHR Series - For High Rate Use

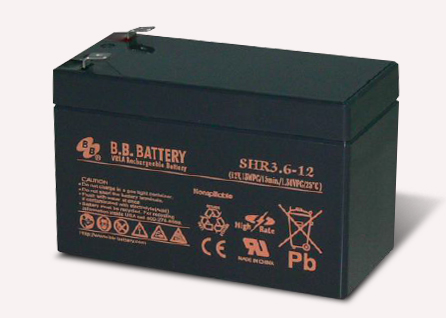

SHR3.6-12 SHR Series - For High Rate Use

Voltage： 12 V
Nominal Capacity：
Approx. Weight： 0.93kg (2.05lbs)
Dimensions： 102L x 48W x65.5H x 70.5TH (mm)
4.02L x 1.89W x2.58H x 2.78TH (inch)
Application： UPS, Toy-Car, Power Pack, Energy Storage System, Fishing Lights Booster
Terminal： T2

Specification Download

SHR3.6-12 SHR Series - For High Rate Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• The battery is designed for high rate usage.
• Absorbent Glass Mat technology for efficient gas recombination.
• The power density at 2min~15min discharging rate is 50% higher than BP series.

Internal Resistance: ≦27mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) SHR3.6-12  Optional: Flame Retardant ABS(UL 94-V0) SHR3.6-12



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





Voltage : 12 V

Approx. Weight : 0.93kg (2.05lbs)

Dimensions : 102L x 48W x65.5H x 70.5TH (mm)
                        4.02L x 1.89W x2.58H x 2.78TH (inch)

Terminal : T2 (Faston Tab 250)

Max Discharge Current for 5 Sec :45 A (5 sec.)

Max Charge Current : 1 A

Application : UPS, Toy-Car, Power Pack, Energy Storage System, Fishing Lights Booster
