Product Selections / Product Information
MSU Series
MSU Series

MSU-1000 MSU Series

Voltage： 2 V
Nominal Capacity： 1(10Hr)
Approx. Weight： 60.5kg (133.4lbs)

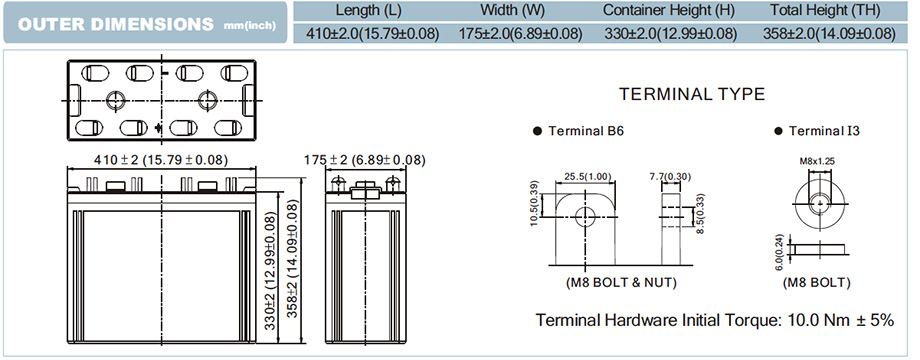

Dimensions： 410L x 175W x330H x 358TH (mm)
15.79L x 6.89W x12.99H x 14.09TH (inch)
Application： UPS, Telecom, Energy Storage System, Central Office
Terminal： I3 (optional),  B6

Specification Download

MSU-1000 MSU Series

• Sealed structure, no electrolyte leakage or spill.
• High performance alloy to secure corrosion-proof feature.
• Unique electrolytes system achieves maximum service acceptance.
• Electrolyte with gel technology.

Internal Resistance: ≦0.5mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) MSU-1000  Optional: Flame Retardant ABS(UL 94-V0) MSU-1000FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





Voltage : 2 V

Nominal Capacity : 1(10Hr)

Approx. Weight : 60.5kg (133.4lbs)

Dimensions : 410L x 175W x330H x 358TH (mm)
                        15.79L x 6.89W x12.99H x 14.09TH (inch)

Terminal : B6 (Fitting M8 bolt & nut) I3 is optional

Max Discharge Current for 5 Sec :400 A (5 sec.)

Max Charge Current : 250 A

Application : UPS, Telecom, Energy Storage System, Central Office
