Product Selections / Product Information
BPX Series
BPX Series

BPX7-12 BPX Series

Voltage： 12 V
Nominal Capacity： 1(20Hr)
Approx. Weight： 2.35kg (5.18lbs)

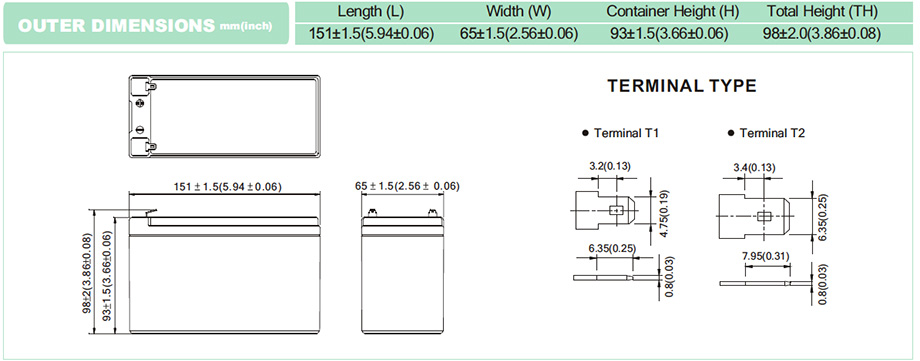

Dimensions： 151L x 65W x93H x 98TH (mm)
5.94L x 2.56W x3.66H x 3.86TH (inch)
Application： UPS, Toy-Car, Laboratory Equipment, Power Pack, Fishing Light
Terminal： T1 (optional),  T2

Specification Download

BPX7-12 BPX Series

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦27mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) BPX7-12  Optional: Flame Retardant ABS(UL 94-V0) BPX7-12FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





Voltage : 12 V

Nominal Capacity : 1(20Hr)

Approx. Weight : 2.35kg (5.18lbs)

Dimensions : 151L x 65W x93H x 98TH (mm)
                        5.94L x 2.56W x3.66H x 3.86TH (inch)

Terminal : T2 (Faston Tab 187) T1 is optional

Max Discharge Current for 5 Sec :105 A (5 sec.)

Max Charge Current : 2.1 A

Application : UPS, Toy-Car, Laboratory Equipment, Power Pack, Fishing Light
