Product Selections / Product Information
SH Series
SH Series

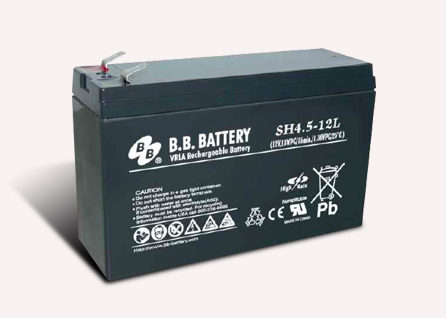

SH4.5-12L SH Series

Voltage： 12 V
Nominal Capacity： 1(10Hr)
Approx. Weight： 1.63kg (3.59lbs)
Dimensions： 151L x 51W x94H x 100TH (mm)
5.94L x 2.01W x3.70H x 3.94TH (inch)
Application： UPS, Toy-Car, Fan, Electronic Doorbell
Terminal： T1,  T2 (optional)

Specification Download

SH4.5-12L SH Series

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• The battery is designed for high rate usage.
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦30mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) SH4.5-12L  Optional: Flame Retardant ABS(UL 94-V0) SH4.5-12L FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





Voltage : 12 V

Nominal Capacity : 1(10Hr)

Approx. Weight : 1.63kg (3.59lbs)

Dimensions : 151L x 51W x94H x 100TH (mm)
                        5.94L x 2.01W x3.70H x 3.94TH (inch)

Terminal : T1 (Faston Tab 187) T2 is optional

Max Discharge Current for 5 Sec :67.5 A (5 sec.)

Max Charge Current : 1.35 A

Application : UPS, Toy-Car, Fan, Electronic Doorbell
