Product Selections / Product Information
BPS Series - For General Use
BPS Series - For General Use

BPS230-12 BPS Series - For General Use

Voltage： 12 V
Nominal Capacity： 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
Approx. Weight： 72.50kg (159.8lbs)
Dimensions： 522L x 240W x216H x 240TH (mm)
20.55L x 9.45W x8.50H x 9.45TH (inch)
Application： UPS, Telecom
Terminal： I3 (optional),  B9

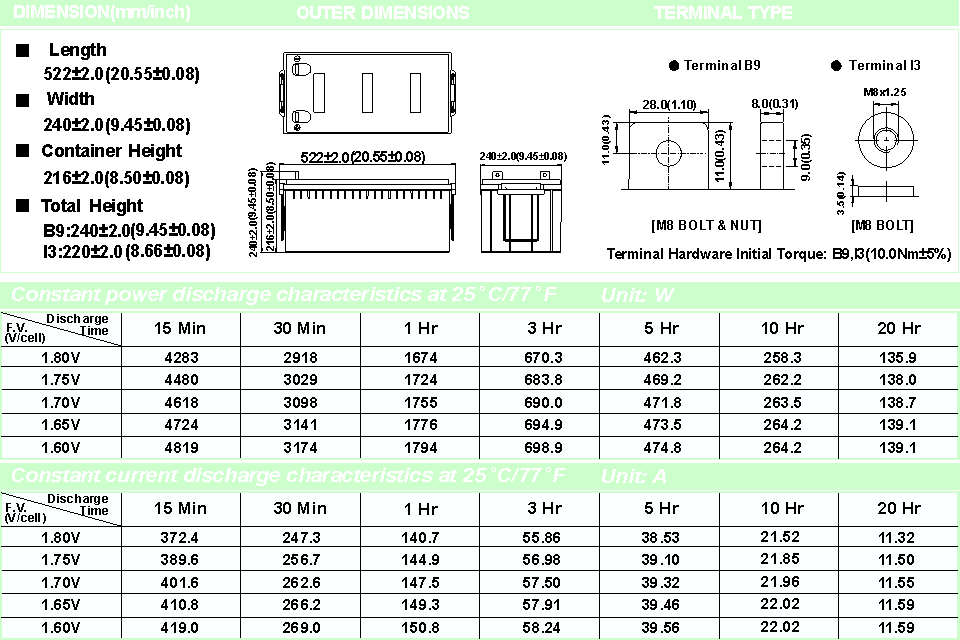

Specification Download

BPS230-12 BPS Series - For General Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.

Internal Resistance: ≦27mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) BP7.2-12  Optional: Flame Retardant ABS(UL 94-V0) BP7.2-12FR



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.


Voltage : 12 V

Nominal Capacity : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

Approx. Weight : 72.50kg (159.8lbs)

Dimensions : 522L x 240W x216H x 240TH (mm)
                        20.55L x 9.45W x8.50H x 9.45TH (inch)

Terminal : B9 (Fitting M8 bolt & nut) , I3 is optional

Max Discharge Current for 5 Sec :800 A (5 sec.)

Max Charge Current : 69 A

Application : UPS, Telecom
